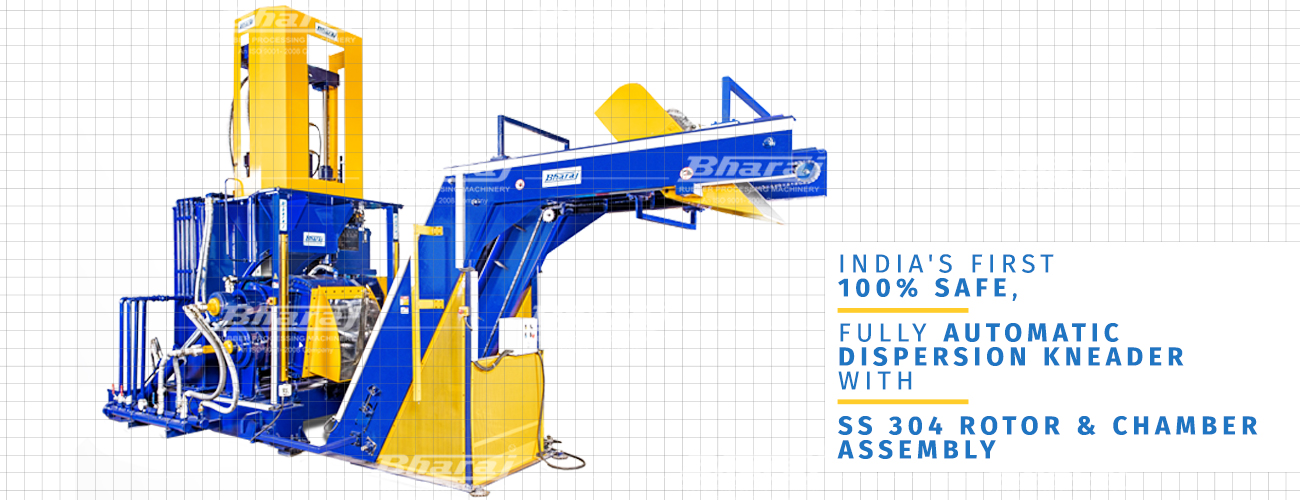

PRODUCT INTRODUCTION

Bharaj Super Mix Kneader is most Suitable For Hoses Compound, Silicon Rubber, Belts, Gaskets, Sponge, Soles, Sandals, Automobile, Mechanical Goods & Master Batches, E.V.A. Phenol, Polythene, Thermoplastic Resins & Allied Rubber Industries.

Equipped With Hydraulic Tilting System Practically Zero Maintenance in the Tilting System to Other Machines (Optional Feature).

You need Bharaj Super Mix Kneader When

  •   You need much greater production.
  •   You need perfect Dispersion of Ingredients.
  •   You must avoid loss of expensive ingredients to atmosphere.
  •   Colours & ingredients change frequently.
  •   You need dust-free mixing.
  •   You want to use your space most profitably.
  •   You want to save on energy.
  •   Shortage of trained workers hits you frequently.

A boon to medium and large rubber compounding requirements, where excellent dispersion of frequently changing ingredients is a prime requirement.

A labour and time saving system that offers an output three times or more as compared to an open mixing mill and substantially upgrades the quality by brigning about far superior results in kneading and mixing.

Special Features

Quick Cleaning
Superior Dispersion
Maximum Cooling
Single Pass Mixing
Shorter Mixing Cycle
Drop Door Discharge Type Available
Multiple Rotor Designs

MATERIALS OF CONSTRUCTION

Alloy steel, fabricated, hard faced, jacketed (both longitudinal & transverse) for steam heating & water cooling, capable of titling to 130 (hydraulic tilt) for easy discharge & cleaning.

Made of alloy cast-steel, spirally annular design, with node-tips internally cored for effective temperature control. The land of the nodes are hard faced & profile ground.

Steel fabricated, hard faced at mix contact area, jacketed for effective heating / cooling. (Available in Pneumatic & Hydraulic type).

Specially designed to keep environment cleanliness, easily replaceable.

Rotor Types Available

Tri Blade
Inter Meshing
Tangential

Inter Meshing Rotors

The built in water Jacket easily control and stabilize the temperature of a wide range of material

TECHNICAL SPECIFICATIONS

Model No. Main Motor
4 Pole / 400/440 V.
SPD PSQ. CASE		 Rotor
Speed		 Chamber Volume in
Liters		 Effective
Working
Capacity		 Tilting
Angle		 Tub
Tilting
Motor		 Air
Compressor
Required
BMK-05 10 HP - 15 Liters 05 Liters 130° 2 HP 2 HP
BMK-10 20 HP - 25 Liters 10 Liters 130° 2 HP 2 HP
BMK-25 30 HP 35/30 RPM 40 Liters 20 Liters 130° 2 HP 2 HP
BMK-35 60 HP 35/30 RPM 75 Liters 35 Liters 130° 3 HP 3 HP
BMK-55 75 HP 35/30 RPM 125 Liters 55 Liters 130° 3 HP 3 HP
BMK-75 125 HP 35/30 RPM 170 Liters 75 Liters 130° 3 HP 3 HP
BMK-110 200 HP 35/30 RPM 250 Liters 120 Liters 130° 7.5 HP 5 HP
BMK-150 200 HP 35/30 RPM 350 Liters 150 Liters 130° 7.5 HP 7.5 HP
